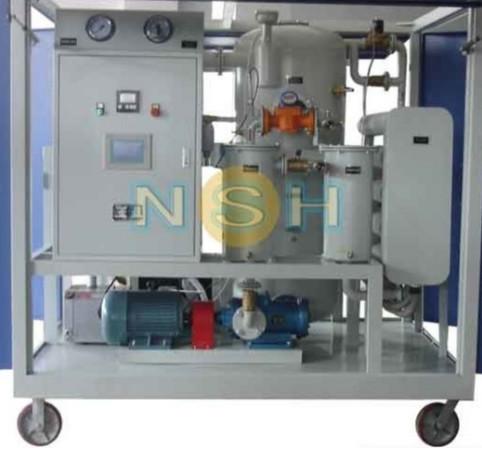

6000 Liter/Hour Intelligent Mobile Type Doule-Stage Vacuum Oil Purifier

working principle

Because the boiling point of water in oil is greatly reduced under high vacuum, a large amount of water can be volatilized without high temperature. The higher the degree of vacuum, the greater the drop in boiling point and the faster the water evaporates. Similarly, the higher the temperature, the faster the water evaporates. Using this principle, the water in the oil can be quickly and effectively removed through heating and high vacuum, and the impurities in the oil can be removed through the filter, finally achieving the effect of purifying the oil quality.

working process

After the oil is inhaled to the heater through the crude filter, the temperature rises, and the initial oil and gas and oil and water are separated in the

first-stage vacuum separation tank, and then the oil and gas are separated completely in the second-stage vacuum separation tank. The water and gas are removed by the booster pump and vacuum pump, and the oil is output by the oil pump and fine filter.

Product features

1. VDF has the characteristics of small size, high efficiency and easy to move, especially suitable for on-site production. And it can dry the moisture of the electric equipment, and it is also convenient for the electric equipment to be vacuum oiled.

2. The structure adopts infrared night position automatic control device, system pressure automatic protection device and high-efficiency degassing element; easy and safe to operate.

Sino-NSH Oil Purifier Manufacture Co., Ltd. is a high-tech company which is engaged in researching, developing and manufacturing purification equipments. Its parent company, Sino-NSH High-Tech Company, was established in 1992.

NSH regards technical innovation and all-round service as its philosophy. Taking advantage of human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making purification equipments. NSH has been authorized the ISO9001 Quality Management System Certificate and European CE Certificate, now NSH becomes the main manufacture base of purification machines in China. 　

NSH oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway and aviation, etc. The main products covering 100 kinds of products can meet different needs of customers. For special demands of customers, we offer particular solutions.

Nowadays, the company’s sales network covers all the provinces in China and exports to more than twenty countries around the world.

NSH products earn its fame on high quality, advanced technology and excellent service in both domestic and foreign markets.

NSH products are not only able to lower customers' cost and secure risk effectively, but also solve the problem of the waste-oil-contaminate environment.

Join hands with NSH, and get accomplishments for you and us.
