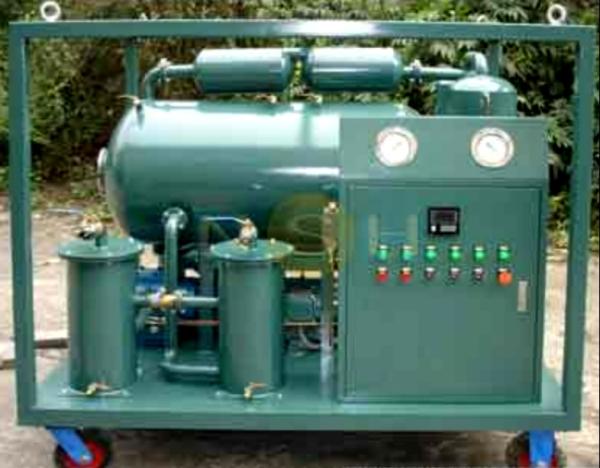

With Level Detector Oil Tester 11kw 600L/H Vacuum Transformer Oil Purifier


The Reason of Contamination:
1. Transformer oil under the action of thermoelectric field, oil and oxygen contact is gradually oxidized into various oxides and acids, alcohols and other forms of insoluble gum.
2. Due to the leakage of the system, the seal is not strict, the oil is in heat load for a long time, and the open oil storage and other reasons, the water and gas in the air settle in the oil, resulting in water and gas in the oil.


Vacuum Transformer Oil Purifier Description:
-VF series transformer oil purifier is a dehydration and degassing device for heat treatment and vacuum treatment. Compared with Sino-NSH VFD, this series is more suitable for smaller oil volume or smaller capacity requirements.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oil in power transformers and other oil-filled electrical equipment. It can effectively remove dissolved and free water, dissolved gas and particle impurities, and improve the special index of insulating oil.
-VF series transformer oil purifier combines vacuum flash evaporation technology and layered step-by-step closing filtration technology to achieve the best oil purification performance. At the same time, through the integration of high-efficiency thermal vacuum and double-stage vacuum, the breakdown voltage is greatly improved, which can be increased from 25kV to more than 60kV.
Vacuum Transformer Oil Purifier Technical Parameters:

Working Principle:
1.Vacuum oil purifier is designed according to the boiling point of water and oil. It is composed of vacuum heating tank, fine filter, primary filter, vacuum pump, exhaust oil pump and electrical cabinet.
2. Vacuum pump will air out creating vacuum in the vacuum tank, the oil under the action of atmospheric pressure, oil after entrance pipe into the prefilter to remove larger particles, and then enter the heating tank, after heated to a temperature of 40-75 ℃ of oil into the vacuum tank, oil in water evaporate into water vapor rapidly and continuously in the vacuum pump oil water separator, The water vapor in the separator is cooled and reduced to water before being released.
3. The oil in the vacuum heating tank is discharged into the fine filter by the exhaust pump through the filter element to filter out the particulate impurities. In order to complete the vacuum filter quickly remove impurities in the oil, water, gas, the whole process, so that the clean oil discharged from the exit of the machine.


Optional:
1. Single axle trailer,double axle trailer,trailer with enclosure doors
Rode-worthy, 2 pneumatic tyres or 4 pneumatic tyres, pre-leg, two-eye, brake, rear lights,etc
2. Separated operation room
With inspection window, air conditioning, operation desktop, storage sapce, etc, any custom option
3. Explosion-proof
Tailored according to usage, i.e: Exd II BT4 or Exd II CT4
4. Full automatic
PLC, touch screen/text screen/mimic diagram, data monitoring.
5. Steel enclosure shield
Weather-proof, steel cover, horizontal/vertical doors, hydraulic supports
6. Aluminum enclosure shield
Weather-proof, aluminum cover, horizontal/vertical doors, hydraulic supports
7. Station with forklifts hole type
Thicken chassis, forklifts hole, hoisting eyes on top, etc.
8. Tailored
Available in kinds requirements

Sino-NSH Oil Purifier Manufacture Co., Ltd. is a high-tech company which is engaged in researching, developing and manufacturing purification equipments. Its parent company, Sino-NSH High-Tech Company, was established in 1992.

NSH regards technical innovation and all-round service as its philosophy. Taking advantage of human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making purification equipments. NSH has been authorized the ISO9001 Quality Management System Certificate and European CE Certificate, now NSH becomes the main manufacture base of purification machines in China. 　

NSH oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway and aviation, etc. The main products covering 100 kinds of products can meet different needs of customers. For special demands of customers, we offer particular solutions.

Nowadays, the company’s sales network covers all the provinces in China and exports to more than twenty countries around the world.

NSH products earn its fame on high quality, advanced technology and excellent service in both domestic and foreign markets.

NSH products are not only able to lower customers' cost and secure risk effectively, but also solve the problem of the waste-oil-contaminate environment.

Join hands with NSH, and get accomplishments for you and us.
