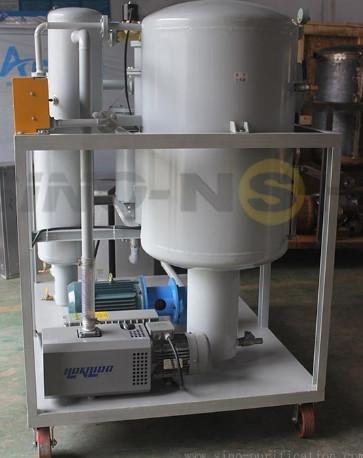

1800L/H Steel Enclosure Shieled Dehydration Vacuum Transformer Oil Purifier

Vacuum Transformer Oil Purifier Description:

-VF series transformer oil purifier is a heat treatment and vacuum treatment dehydration and degassing device. Compared with Sino-NSH VFD, this series is more suitable for smaller oil quantity or smaller capacity requirement.
-VF series transformer oil purifiers are mainly used to improve the property of insulating oil in power transformers and other oil-filled electrical equipment. It can effectively remove dissolved and free water, dissolved gas and particulate impurities, and improve the special indicators of insulating oil.
-VF series transformer oil purifier combines vacuum flash evaporation technology and layered gradual closing filtration technology to achieve the best oil purification performance. At the same time, by integrating high-efficiency thermal vacuum and dual-stage vacuum, the breakdown voltage is greatly improved, which can be increased from 25kV to more than 60kV.

Vacuum Transformer Oil Purifier Technical Parameters:

Advantages:

1. High dehydration and demulsification efficiency
2. Strong filtration and purification performance
3. Good working stability
4. Multipurpose

Optional Auxiliary Equipment:

1. Oil tester
2. Water content tester
Accuracy: Aw0-1, measure scope: 0-100ppm, Output: one is ppm, the other is temperature
3.SINO-NSH digital flow meter
Accuracy:1, test range: 300-30000(L/H), application: water,oil,alcohol,liquid, working pressure: 0-25(Mpa), working temperature: 0-120(℃)
4. SINO-NSH particle count meter
5. Foam level detector
When there id foam in the tank and foam reahesa certain level, a singal will be sent to the magnetic valve, the magnetic valve will automatically shut on. The foam will be removed quickly, after removing foa, the magnetic valve will shut off.
6. SINO-NSH-PLC with touch screen and data monitor
Pre-set programmable logical control. Touch screen is installed on the control cabinet and programmed to provide a simplified flow diagram showing all maior components. All operating controls shall be located on th eflow diagram, and maior function are controlled and adjusted by the touch of screen. It allows maximum real-time feedback of collecting data and value on the screen(function customizable).
7.SINO-NSH dissolved gas meter
8. SINO-NSH digital dielectic dissipation factor tester
