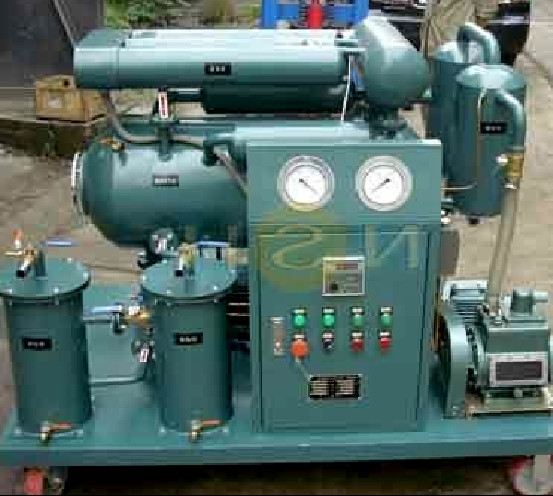

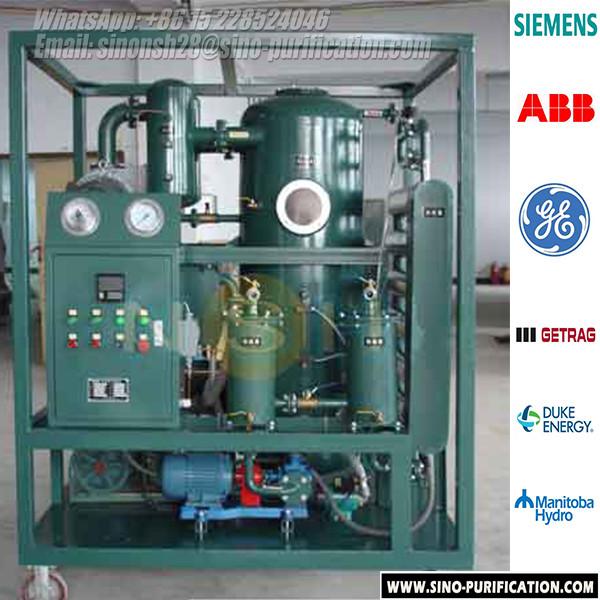

Lightweight Vacuum Transformer Oil Purifier Small Capacity 600
Liters Per Hour
Application Scenarios of the Transformer Oil Purification Machine
Insulating oil filtration machine is used in power plants, power
stations, power companies, metallurgy, petrochemical, railway, and
other industrial and mining enterprises to purify unqualified
electrical insulating oil. It can also be used for vacuum pumping
and vacuum drying of electrical equipment.
Working Principle of Sino-NSH VF-10 Dielectric Oil Purifier
When the VF is working, the oil enters the primary filter through
the inlet under the action of the internal and external pressure
difference, and the large particles of impurities are filtered out.
After the oil is heated by a multi-stage electric heater, it enters
the Sino-NSH special vacuum separation tank. In the separation
tank, the mist is first formed, and then the film is formed, so
that the contact area in the vacuum is expanded to hundreds of
times, and the water in the oil is obtained under the conditions of
high heat, high vacuum, large surface, and high pumping speed.
Vaporizes quickly and is exhausted by the vacuum system.
Features of Sino-NSH-VF-10
1. Three-dimensional flash evaporation, efficient dehydration, and
degassing.
2. Impurity removal technology combining mesh filtration and
polymer adsorption.
3. Infrared liquid level automatic control.
4. Trinity interlocking and protection device.
5. This machine can be used for vacuum oiling and vacuum drying of
insulating power equipment such as transformers.
6. This machine can be used together with the transformer oil
regeneration and decolorization device to add functions such as
acid removal, decolorization, free carbon removal, and dielectric
loss reduction (insulating oil regeneration oil purification
plant).
Main Components of the Sino-NSH VF Model
1. Vacuum Pump
2. Oil Pump
3. Filtration cartridge
4. Vaccum separation chamber
5. Electrical heater
Parameter
| Parameters | Value |
| VF-10 | VF-20 | VF-30 | VF-50 | VF-100 |
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 |
| Heating Power, kW | 9 | 15 | 24 | 36 | 60 |
| Total Power, kW | 11 | 17 | 26 | 39 | 65 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 25 | 25 | 25 | 32 | 40 |
| Outlet Diameter, mm | 25 | 25 | 25 | 32 | 40 |
Dimensions
(without trailer) | length, mm | 1300 | 1400 | 1400 | 1900 | 1550 |
| width, mm | 900 | 900 | 900 | 1400 | 1550 |
| height, mm | 1300 | 1300 | 1300 | 900 | 1850 |
| Weight(without trailer), kg | 300 | 330 | 350 | 400 | 650 |
| Processed Oil Spec | Water Content, ppm | ≤7 |
Dielectric Strength, Kv | ≥60 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Gas Content, % | ≤0.1 |
Our Service
1. 1 years warranty.
2. Provide customers with all technical drawings, materials of
equipment purchased, and long-term technical consultation for free.
3. Strictly according to customer needs, provide customers with the
best oil treatment solutions, and provide good performance
products.
4. Ensure that the equipment is provided with perfect processing
technology, perfect testing means, and equipment performance is
good.
Retrofitting Options
1. Fully automatic PlC touchable screen
2. Digital water content tester
3. Digital flow meter
4. Breakdown voltage tester
5. Particle count meter
Other Models Purifier Machines
| TF Series: |
| TF series oil filter is a filtration and dehydration unit with
thermal and vacuum processing, it's ideal for filtration and
dehydration of turbine oil, this unit can extend turbine oil life
by removing contaminates from oil, such as water, gas, and
particulates, improve the oil properties. |
| LV Series: |
| LV series oil filter is a dehydration and degassing unit with
thermal and vacuum processing, it's a multifunctional purifier that
can treat various kinds of lubricant oils. |
| FV Series: |
| LV series oil filter is a stainless steel machine with thermal and
vacuum processing, it's mainly used to improve the properties of
phosphate ester fire-resistant oil in generator sets. |
| GER Series: |
| Used oil regeneration system is suitable to regenerate used
internal-combustion engine oil including diesel engine oil,
gasoline engine oil, and used hydraulic oil, and other used
lubrication oil for machinery. |
| GED series: |
it is used to recycle all kinds of waste oil into base oil or
diesel oil with high quality.
|
