Hydraulic Oil Filtration And Lubricant Oil Purification Equipment For Power Station
Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is multifunctional purifier which can treat various kinds of lubricant oils.
Sino-NSH-LV is mainly used to remove dissolved and free water , and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency. It has a strong anti-emulsifying capability, which could separate the large amount of water from oil and the trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
Sino-NSH-LV maintains:
- Hole user-friendly design
- Four main security and protecting system to ensure safe operation
- Adopting delamination gradual-close filtering technology
- Online working
- High efficiency, low noise
- Environmentally friendly design
- Low maintenance cost
Technical specification
Parameter | Value | |||||||
LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 | ||
Capacity,liters/hours | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
Heating Power,kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 | |
Total Power,kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 | |
Power supply | Fully customizable | |||||||
Inlet Diameter,mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
Outlet Diameter,mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
Dimensions (without trailer) | Length,mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
Width,mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
Height,mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
Weight(without trailer),kg | 600 | 80 | 900 | 1150 | 1500 | 1700 | 2400 | |
Processed Oil Spec | Water content,ppm | ≤ 100 | ||||||
Cleanliness(NAS 1638) | ≤ 6 | |||||||
Filtration fineness,um | ≤ 5(or 1-5 as needed) |

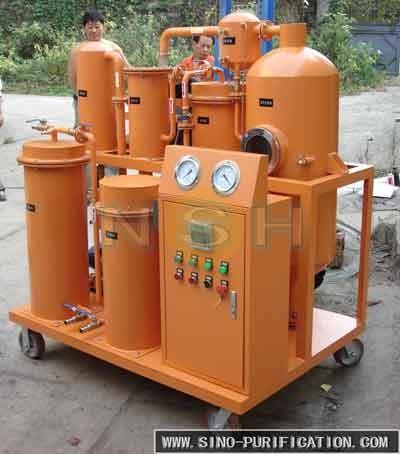

Products show:
Company and factory picture:
![]() |
