Waste Engine Oil Recycling Machine Used Transformer Insulation Oil
Purifier
Sino-NSH-GED-WB is designed to process and recycle waste oils, thereby to acquire
high quality base oil.
Sino-NSH-GED-WB adopts the advanced technology of vacuum distillation, can
effectively remove wearing debris, pitches, waxes, impurities,
water, carbon deposits, oxides from the waste oil, as well as
decrease the acid. The base oil acquired is with high quality that
can meet the standard and requirements for blending various
industrial lubrication oils. During the distillation process, a
powerful vacuum pump system provides a stable vacuum, the
hydrocarbon chain breaks to reform new molecule of the oil, and
turns into oil mist. Then it turns into liquid oil by effective
condensation. Exhaust gas treatment device is equipped to ensure
that emission gas strictly meets environmental requirements.
Sino-NSH-GED-WB is the upgrade model of NSH-GER, saves operating costs and
increase oil recovery rate, it can reach high rate above 90%. In
addition, NSH-GED-WB has a wider range of applications, can be used
to process almost all waste oils, such as engine oil, hydraulic
oil, gear oil, etc. Both single oil or oil mixture can be processed
and recycled by this system.
Various capacities are available for this system to meet different
needs of customers, and a variety of heating methods also allow
customers to choose according to actual needs.
Specification:
| Parameter | Value |
| GED-WB-1 | GED-WB-2 | GED-WB-3 | GED-WB-4 | GED-WB-5 | GED-WB-10 | GED-WB-20 |
| Capacity,Ton/Day | 1 | 2 | 3 | 4 | 5 | 10 | 20 |
| Total Power,kW | 28 | 40 | 50 | 60 | 60 | 60 | 80 |
| Heating Method | Fuel,gas or electric heating |
| Working Pressure,MPa | -0.09 (Vacuum Distillation) |
| Working Temperature,℃ | 0-450 |
| Power Supply | Fully customizable |
| Land Area,㎡ | 40 | 50 | 70 | 90 | 100 | 150 | 200 |
| Weight,Ton | 3 | 5 | 6 | 8 | 10 | 14 | 22 |
| Recovery Rate,% | ≥85 |
| Oil Appearance | Clear&Bright |
Company information:
Sino-NSH Oil Purifier Manufacture Co.,Ltd is a leading manufacture
of oil purification and regeneration systems worldwide.
NSH products are extensively used in the field of electric power,
petroleum, natural gas, mechanical manufacture, steel, metallurgy,
railway, aviation etc. to meet different demands of customers. And
tailored solutions are provided for special applications.

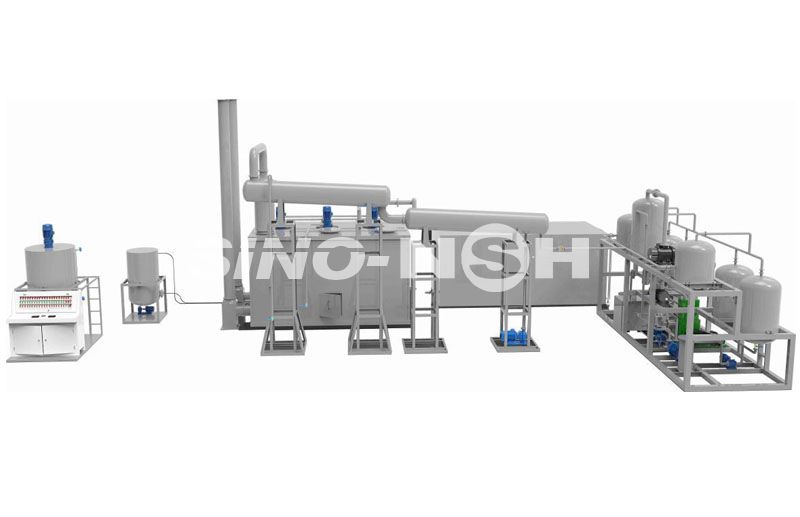

Products show:
Company and factory picture:
