Brand Name : | Sino-NSH |
Model Number : | SINO-NSH-GER |
Certification : | ISO, CE |
Payment Terms : | T/T |
Supply Ability : | 100/month |
Delivery Time : | 12 working days |
Best Insulation Oil Purification System Oil Regenerate Processing Used Oil Purifier
Sino-NSH-GER is regeneration system for waste engine oil including diesel engine oil, gasoline engine oil, as well as used hydraulic oil and some other machinery’s lubrication oils.
Sino-NSH-GER is designed with the combination technology of physical and chemical processing, can effectively remove aging products and contaminants from used oil. Physical processing method can remove solid particles, water, gas etc. Chemical processing method allows removal of colloid, oxide, acid, pitch in the used oil. Specially, this system can restore the color of used oil and remove the scent rapidly.
Specification:
Parameter | Value | |||||
GER-1 | GER-2 | GER-3 | GER-4 | GER-5 | ||
Capacity,liters/8-10 hours | >30 | >50 | >100 | >150 | >200 | |
Heating Power,kW | 0.74 | 0.8 | 1.95 | 2.42 | 2.58 | |
Total Power,kW | 1.5 | 1.5 | 2.2 | 3 | 3 | |
Power supply | Fully customizable | |||||
Inlet/Outlet Diameter,mm | DN20 | DN20 | DN25 | DN32 | DN32 | |
Weight,kg | 40 | 40 | 40 | 40 | 40 | |
Dimensions (without trailer) | Reaction System,mm | 3500*1900*2100-5600*2100*2300 | ||||
Filtration System,mm | 2*2800×1400×2000-2*3200×1600×2100 | |||||
Exhaust Gas Processing Saystem,mm | 950*2000*3300 | |||||
Weight,kg | 2500 | 3500 | 4500 | 5500 | 6000 | |
Recovery Rate,% | 70-90 |

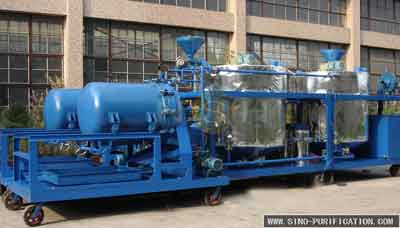

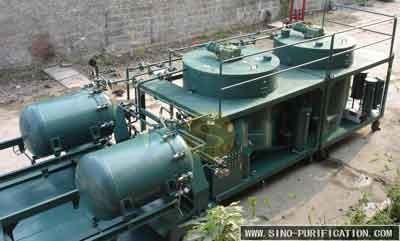

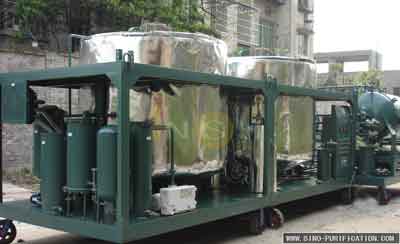

Products show:

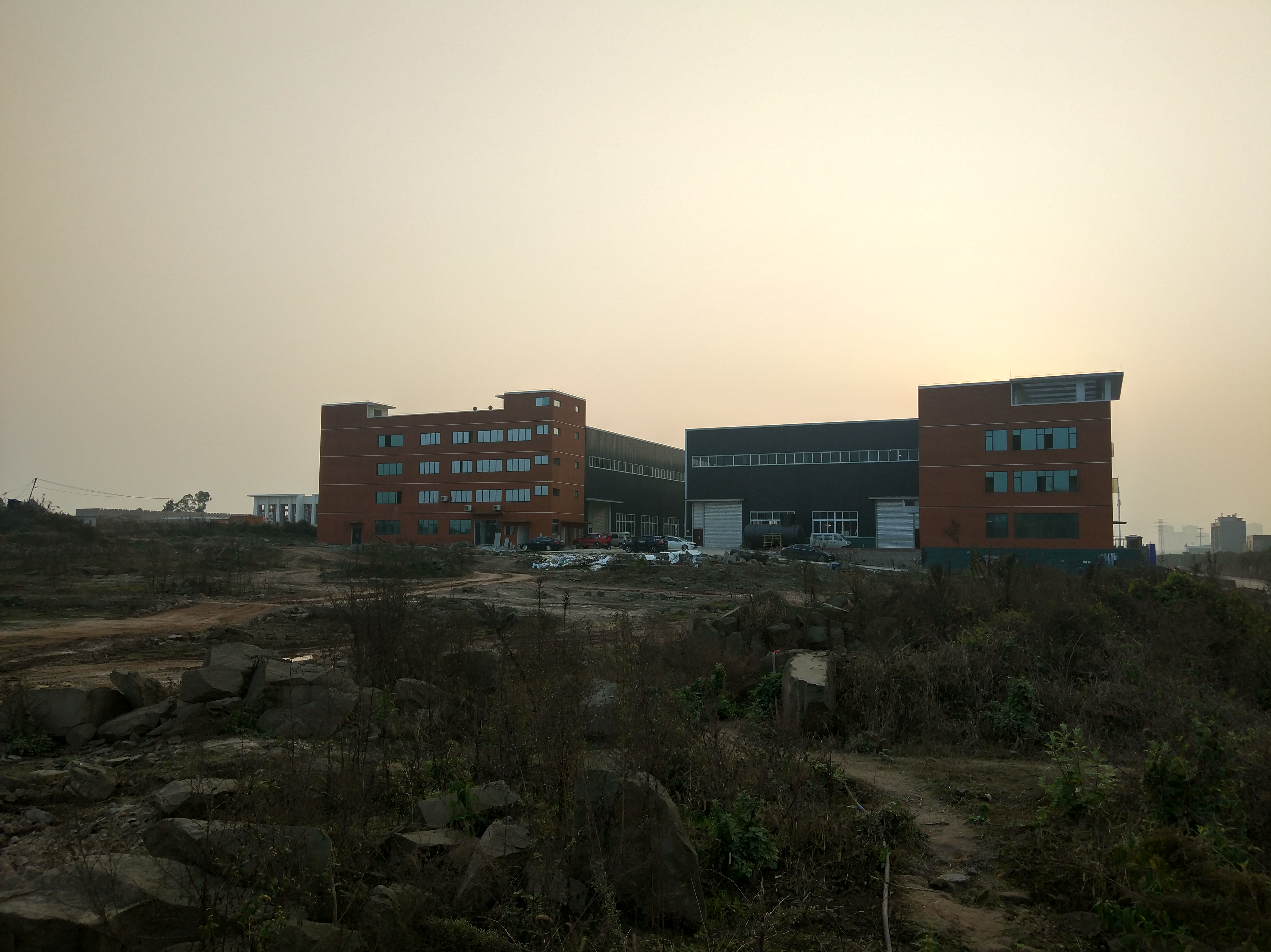

Company and factory picture:
![]() |
