PLC Control Vacuum Dehydrator Filtration Recycle System Transformer
Vacuum Oil Purifier
Sino-NSH-TF is a filtration and dehydration unit with thermal and vacuum
processing.
Sino-NSH-TF is ideal for filtration and dehydration of turbine oil. This units
can extend turbine oil life by removing contaminates from oil, such
as water, gas and particulates, improve the oil properties.
Sino-NSH-TF combines vacuum dehydration technology and coalescence separation
technology, can effectively remove both emulsified and dissolved
water from turbine oil. Fitted with specially made demulsifying
device, it is capable of making turbid emulsified oil very clear.
Multi-stage precision filters minimizes impurities and ensure oil
cleanliness, which can reach or better than NAS 6 Grade.
Sino-NSH-TF maintains an optimized structure and safe controls, as well as
various types to meet the use of different working conditions.
Four main security and protecting system:
Liquid level auto-controlling system
Auto pressure protection system
Steady temperature auto-controlling system
Electrical auto-protection system to control electric phase,
voltage and overload of pump
Technical specification
| Parameter | Value |
| TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 |
| Capacity,liters/hours | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power,kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 |
| Total Power,kW | 18 | 27 | 34 | 53 | 78 | 103 | 129 |
| Power supply | Fully customizable |
| Inlet Diameter,mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter,mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
Dimensions
(without trailer) | Length,mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
| Width,mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 |
| Height,mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 |
| Weight(without trailer),kg | 300 | 300 | 450 | 650 | 750 | 900 | 1500 |
| Processed Oil Spec | Water content,ppm | ≤ 100 |
| Cleanliness(NAS 1638) | ≥6 |
| Filtration fineness,um | ≤ 5(or 1-5 as needed) |
| Emulsification value,min | ≤ 15 |

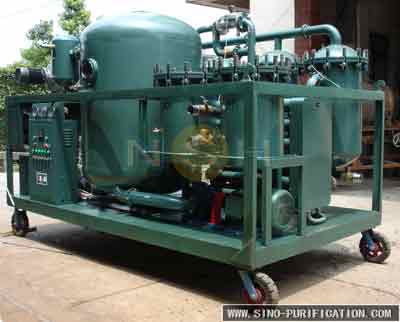

Details photos:
About Sino-NSH
Sino-NSH Oil Purifier Manufacture Co.,Ltd is a leading manufacture
of oil purification and regeneration systems worldwide.
Since 1992,Sino-NSH has been researching, developing and
manufacturing oil purification and recycling systems. Based on the
profession and achievements in this field, NSH passed the approval
of the ISO9001:2015 quality system, Environmental Management System
as per GB/T 24001-2016/ISO 14001:2015, and was awarded to Chinese
high-tech enterprise etc. NSH professional technical team
successfully developed hundreds of practical patents and obtained
certification for thr products.
NSH products are extensively used in the field of electric power,
petroleum, natural gas, mechanical manufacture, steel, metallurgy,
railway, aviation etc. to meet different demands of customers. And
tailored solutions are provided for special applications.
Service & support: NSH regards technical innovation and satifying
service as its philosophy. Taking advantage of human resource
capital and absorbing domestic and foreign advanced purification
technology, NSH is committed in making high quality purification
equipment and become the main manufacture base of purification
machine in China.
