With Touch Screen Oil Tester 78kw Degassing Vacuum Turbine Oil
Purifier
Turbine Oil Purifier Features:
1. Liquid level auto-controlling system.
2. Auto pressure protection system.
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase,
voltage, and overload of pump.

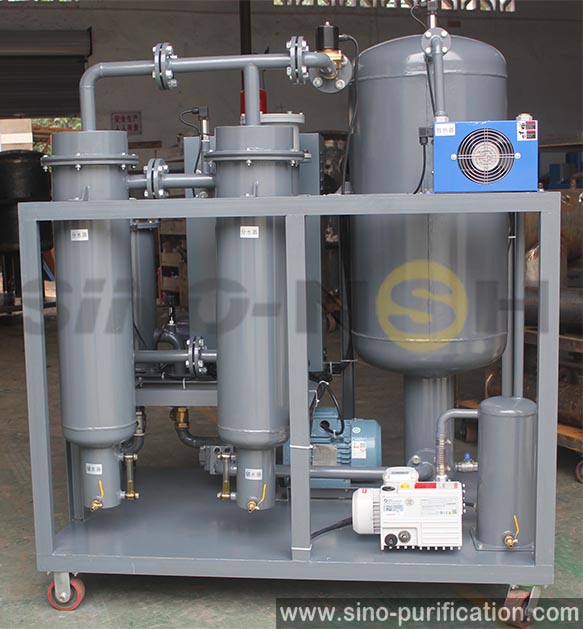

Vacuum Turbine Oil Purifier Description:
-Vacuum Turbine Oil Purifier is a filtration and dehydration unit
with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and
dehydration of turbine oil. This units can extend turbine oil life
by removingcontaminates from oil, such as water, gas and
particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology
and coalescence separation technologym, can effectively remove both
emulsified and dissolved water from turbine oil. Fitted with
specially made demulsifying device, it is capable of making turbid
emulsified oil very clean. Muti-satge precision filters minimizes
impurties and ensures oil cleanliness, which can reach or better
than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and
safe controls, as well as various types to meet the use of
different working conditions.
Vacuum Turbine Oil Purifier Technical Parameters:
| Parameter | Value |
| TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 |
| Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 |
| Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
| width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 |
| height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 |
| Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≥6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
| Gas Content, % | ≤15 |
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other
equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable | |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Other Models of TF Series Turbine Oil Purifier:
| NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier |
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF,
realize the intelligence of the machine and simplify the operation.
Sino-NSH-TF-A utilizes the brand Programmable Logic
Controller(P.L.C) and a series of instrumentations, alarms and
interlocks to provide a fully automatic operation. Manual control
of various functions is provided as required. Several Pilots Lights
are provided to indicate operational atatus of key components and
alarm conditions.
With full scale of on-line testers and detectors as option,
Sino-NSH-TF-A could implements accessible and reliable solutions
for unique request and pratical usage. |
| NSH-TF-Z Coalescence and Separation Turbine Oil Purifier |
Sino-NSH-TF-Z is a dehydration and filtration unit, especially
suits for purification of turbine oil and fuel, etc.
Sino-NSH-TF-Z combines the latest innovations in coalescence
separation technology and micro-glass filter media in one system to
achieve optimal fluid cleanliness. With specially designed filter
elements, it can efficiently separate water from oil quickly, break
the emulsification, as well as remove particulate pollutants. After
separation, the water content can be reduced to less than 100 PPM,
and the cleanliness can reach or better than NAS4~6 Grade.
Sino-NSH-TF-Z can effectively save operating costs as no heating or
vacuum is required, and it is designed for continuous operation and
unattened operation. |
Tailorded Vacuum Oil Solutions:
Sino-Nsh Plants could implement accessible and reliable solutions
for unique request and practical usage. It could be special
demension request, special structure adoption, unusual using
condition demand, or exact performance requirement. Sino-NSH
professional technical group and crafted skill man ensure every
Sino-NSH system is custom engineering and design that exceed your
expectation.
