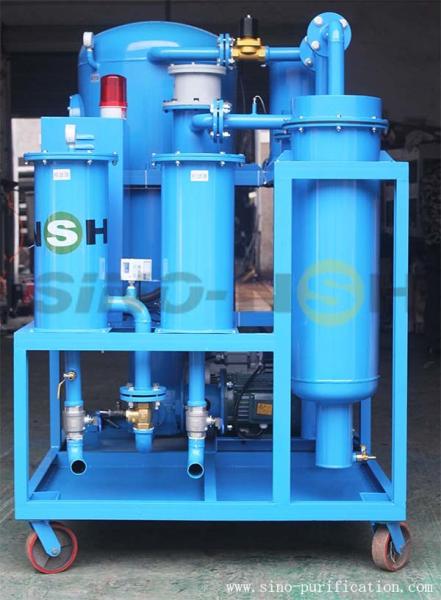

Automatic With Touch Screen Dehydration 103kw Vacuum Turbine Oil
Purifier
What Are Some Contaminants of Oil?
Moisture, Solid particles, Gases and fumes, Asphalt-resinous
paraffin deposits, By-products of combustion, Acids and varnishes,
Oil sludge, Metallic particles, Minerals and dirt, Unsaturated
hydrocarbons, Metal oxides, Poly-aromatic hydrocarbons, Additive
remnants, By-products of oil decomposing, Fuel.
103kw Vacuum Turbine Oil Purifier Function:
The function of vacuum oil filter is to eliminate the particles,
water, gas and other pollutants in the oil, and reduce the acid
value. Make the oil dielectric strength, water content, gas
content, acid value, dielectric loss and other key indicators to
meet the requirements of qualified specifications, as far as
possible to ensure the safe operation of users' electrical
equipment.
Vacuum Turbine Oil Purifier Description:
-Vacuum Turbine Oil Purifier is a filtration and dehydration unit
with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and
dehydration of turbine oil. This units can extend turbine oil life
by removingcontaminates from oil, such as water, gas and
particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology
and coalescence separation technologym, can effectively remove both
emulsified and dissolved water from turbine oil. Fitted with
specially made demulsifying device, it is capable of making turbid
emulsified oil very clean. Muti-satge precision filters minimizes
impurties and ensures oil cleanliness, which can reach or better
than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and
safe controls, as well as various types to meet the use of
different working conditions.
What is Oil Purifier?
Oil filter is a filter device which uses gravity centrifugal
pressure vacuum distillation mass transfer and other technical
methods to remove the oxidation by-products and moisture of
mechanical impurities in impure oil. Oil filter is mainly used to
improve the cleanliness of mechanical and electrical oil, so that
it can play the best performance and extend the service life of
equipment.
Vacuum Turbine Oil Purifier Technical Parameters:
| Parameter | Value |
| TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 |
| Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 |
| Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
| width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 |
| height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 |
| Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≥6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
| Gas Content, % | ≤15 |
Tailorded Vacuum Oil Solutions:
Sino-Nsh Plants could implement accessible and reliable solutions
for unique request and practical usage. It could be special
demension request, special structure adoption, unusual using
condition demand, or exact performance requirement. Sino-NSH
professional technical group and crafted skill man ensure every
Sino-NSH system is custom engineering and design that exceed your
expectation.
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other
equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Vacuum Turbine Oil Purifier
