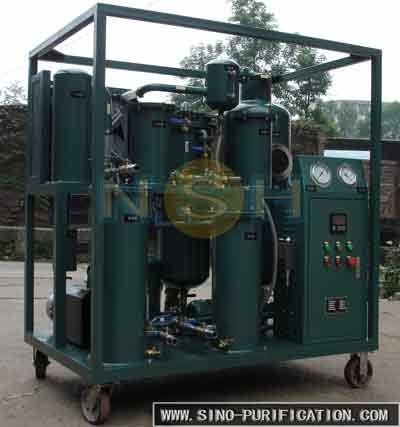

35kw Degassing Vacuum Lubrication Oil Purifier 1800L/H

Ask Lasest Price
Brand Name :	SINO-NSH
Model Number :	LV-30
Certification :	CE, ISO,SGS, SASO, SONCAP
Price :	Negotiate
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50 sets per month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

35kw Degassing Vacuum Lubrication Oil Purifier 1800L/H

Mine Industry Explosion-Proof 35kw Degassing Vacuum Lubrication Oil Purifier

Other Optional Models for Transformer Oil/Insulation Oil:

VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

VF series-- Single-Stage Vacuum Transformer oil Filtration machine.

Vacuum Lubrication Oil Purifier Description:

1. Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is a multifuncational purifier which can treat various kinds of lubricant oils.
2. Sino-NSH-LV is mainly used to remove dissolved and fee water,and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency,it has a strong anti-emulsifying capability, which could separate the large amount of water from oil and trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
3. Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirements of transformer manufacturers and service companies.

Vacuum Lubrication Oil Purifier Technical Parameters:

Parameter		Value
Parameter		LV-10	LV-20	LV-30	LV-50	LV-100	LV-150	LV-200
Capacity, liters/hour		600	1200	1800	3000	6000	9000	12000
Heating Power, kW		15	18	30	45	90	120	180
Total Power, kW		17	21	35	50	96	126	186
Power supply		Fully Customizable
Inlet Diameter, mm		20	20	20	25	40	50	65
Outlet Diameter, mm		20	20	20	25	40	50	65
Dimensions (without trailer)	length, mm	1350	1500	1550	1900	2200	2400	2900
	width, mm	1100	1200	1250	1400	1500	1600	1800
	height, mm	1700	1750	1800	1800	1850	1900	2000
Weight(without trailer), kg		600	800	900	1150	1500	1700	2400
Processed Oil Spec	Water Content, ppm	≤100
	Dielectric Strength, Kv	≤6
	Filtration Fineness, um	≤5( or 1-5 as needed )

Other Models Purifier Machines

TF Series:

TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties.

FV Series:

LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set.

GER Series:

Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series:

it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
