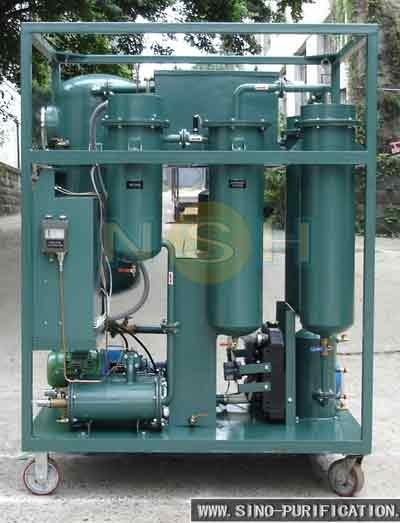

Dehydration Large Capacity 103kw 12000L/H Vacuum Turbine Oil
Purifier
Filter maintenance:
1. Check the blocking of the filter element
2. In the case of no blocking 1 to 3 months to replace or clean the
filter element, at the same time empty the shell visceral oil,
clean the interior
3. Regular replacement of the filter
4. Can not bring foreign bodies
103kw Vacuum Turbine Oil Purifier Function:
The function of vacuum oil filter is to eliminate the particles,
water, gas and other pollutants in the oil, and reduce the acid
value. Make the oil dielectric strength, water content, gas
content, acid value, dielectric loss and other key indicators to
meet the requirements of qualified specifications, as far as
possible to ensure the safe operation of users' electrical
equipment.
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other
equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable | |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950
|
103kw Vacuum Turbine Oil Purifier Description:
-Vacuum Turbine Oil Purifier is a filtration and dehydration unit
with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and
dehydration of turbine oil. This units can extend turbine oil life
by removingcontaminates from oil, such as water, gas and
particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology
and coalescence separation technologym, can effectively remove both
emulsified and dissolved water from turbine oil. Fitted with
specially made demulsifying device, it is capable of making turbid
emulsified oil very clean. Muti-satge precision filters minimizes
impurties and ensures oil cleanliness, which can reach or better
than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and
safe controls, as well as various types to meet the use of
different working conditions.
103kw Vacuum Turbine Oil Purifier Technical Parameters:
| Parameter | Value | | |
| TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 |
| Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 |
| Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
| width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 |
| height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 |
| Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≥6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
| Gas Content, % | ≤15 |
