Electric Station Used Mobile Automatic 39kW Vacuum Transformer Oil Purifier

Ask Lasest Price
Brand Name :	SINO-NSH
Model Number :	VF-50
Certification :	CE, ISO,SGS, SASO, SONCAP
Price :	Negotiate
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50 sets per month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

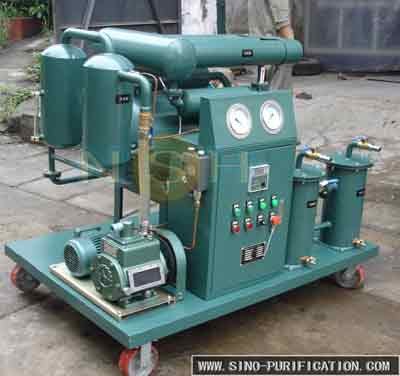

Electric Station Used Mobile Automatic 39kW Vacuum Transformer Oil Purifier

Electric Station Used Mobile Automatic 39kW Vacuum Transformer Oil Purifier

Other Optional Models for Transformer Oil/Insulation Oil:

VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

Vacuum Transformer Oil Purifier Description:

-VF series transformer oil purifier is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH-VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impuritie effectively so as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 60kV.

Vacuum Transformer Oil Purifier Technical Parameters:

Parameter		Value
Parameter		VF-10	VF-20	VF-30	VF-50	VF-100
Capacity, liters/hour		600	1200	1800	3000	6000
Heating Power, kW		9	15	24	36	60
Total Power, kW		11	17	26	39	65
Power supply		Fully Customizable
Inlet Diameter, mm		25	25	25	32	40
Outlet Diameter, mm		25	25	25	32	40
Dimensions (without trailer)	length, mm	1300	1400	1400	1400	1550
	width, mm	900	900	900	900	1550
	height, mm	1300	1300	1300	1700	1850
Weight(without trailer), kg		300	330	350	400	650
Processed Oil Spec	Water Content, ppm	≤7
	Dielectric Strength, Kv	≥60
	Filtration Fineness, um	≤5( or 1-5 as needed )
	Gas Content, %	≤0.1

Other Models Purifier Machines

TF Series:

TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties.

LV Series:

LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier which can treat various kinds of lubricant oils.

FV Series:

LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set.

GER Series:

Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series:

it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
