11kW Digital Dielectic Dissipation Factor Tester Vacuum Transformer
Oil Purifier
Other Optional Models for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil
Regeneration Machine
The Reason of Contamination:
1. Transformer oil under the action of thermoelectric field, oil
and oxygen contact is gradually oxidized into various oxides and
acids, alcohols and other forms of insoluble gum.
2. Due to the leakage of the system, the seal is not strict, the
oil is in heat load for a long time, and the open oil storage and
other reasons, the water and gas in the air settle in the oil,
resulting in water and gas in the oil.

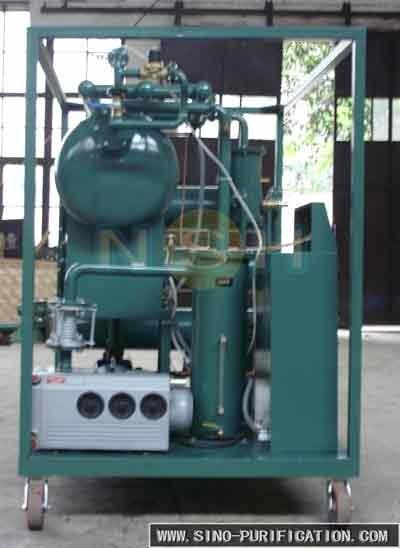

Vacuum Transformer Oil Purifier Description:
-VF series transformer oil purifier is a dehydration and degassing
unit with thermal and vacuum processing. Comparing with
Sino-NSH-VFD, this series is more suitable for smaller oil quantity
or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the
properties of insulating oils in electric power transformers and
other oil filled electrical equipment. It can remove dissolved and
free water, dissolved gas and particulate impuritie effectively so
as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing
evaporation technology and delaminating gradual-close filter
technology to reach best performance of oil purification.
Meanwhile, by integrating efficient thermal and double-stage
vacuum, the breakdown voltage is highly improved, which can be
increased from 25kV to over 60kV.
Vacuum Transformer Oil Purifier Technical Parameters:
| Parameter | Value |
| VF-10 | VF-20 | VF-30 | VF-50 | VF-100 |
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 |
| Heating Power, kW | 9 | 15 | 24 | 36 | 60 |
| Total Power, kW | 11 | 17 | 26 | 39 | 65 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 25 | 25 | 25 | 32 | 40 |
| Outlet Diameter, mm | 25 | 25 | 25 | 32 | 40 |
Dimensions
(without trailer) | length, mm | 1300 | 1400 | 1400 | 1400 | 1550 |
| width, mm | 900 | 900 | 900 | 900 | 1550 |
| height, mm | 1300 | 1300 | 1300 | 1700 | 1850 |
| Weight(without trailer), kg | 300 | 330 | 350 | 400 | 650 |
| Processed Oil Spec | Water Content, ppm | ≤7 |
| Dielectric Strength, Kv | ≥60 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
| Gas Content, % | ≤0.1 |
FAQ:
1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight
transportation and changing climate, good resistance to moisture
and shocks.
Company Profile:
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company
which is engaged in researching, developing and manufacturing
lubrication purification equipment. Its parent company, Sino-NSH
High-Tech Company, was established in 1992.
NSH regards technical innovation and satisfying service as its
philosophy. Taking advantage of Human resources capital and
absorbing domestic and foreign advanced purification technology,
NSH is committed in making purification equipments. NSH passed the
approval of the ISO 9001 quality system and become the main
manufacture base of purification machine in China
NSH Oil purification equipment series are extensively used in the
fields of electric power, petroleum, natural gas, mechanical
manufacture, steel, metallurgy, railway, aviation etc. which
consume lubrication oil. It's the principal products covering more
than 100 kinds of products in 7 series and can meet different needs
of customers. For special demands of customers, we offer particular
solutions. NSH products are not only able to low customers' cost
and security risk effectively, but also solve the problem of which
the waste oil contaminates environment.
