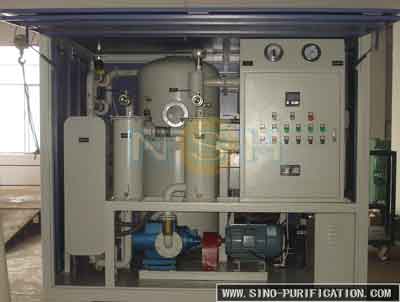

36kW Decontamination Degassification Insulation Oil Double-Stage
Vacuum Oil Purifier Systems
Filter maintenance:
1. Check the blocking of the filter element
2. In the case of no blocking 1 to 3 months to replace or clean the
filter element, at the same time empty the shell visceral oil,
clean the interior
3. Regular replacement of the filter
4. Can not bring foreign bodies
What is Oil Purifier?
Oil filter is a filter device which uses gravity centrifugal
pressure vacuum distillation mass transfer and other technical
methods to remove the oxidation by-products and moisture of
mechanical impurities in impure oil. Oil filter is mainly used to
improve the cleanliness of mechanical and electrical oil, so that
it can play the best performance and extend the service life of
equipment.
Insulation Oil Purifier Systems Application:
Insulation Oil Purifier Systems is mainly used to improve the
properties of insulating oils in electric power and other oil filed
electrical industry.
Function:
The function of vacuum oil filter is to eliminate the particles,
water, gas and other pollutants in the oil, and reduce the acid
value. Make the oil dielectric strength, water content, gas
content, acid value, dielectric loss and other key indicators to
meet the requirements of qualified specifications, as far as
possible to ensure the safe operation of users' electrical
equipment.
Order Tips:
If you are not sure about the filter needed exactly,please advise
what types of the oil adn give the oil specification.We help you
choose certain suitable oil purifier.
Corollary Equipment-VR Vacuum Pump Set:
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable | |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950
|
Double-Stage Vacuum Insulation Oil Purifier Technical Parameters:
| Parameters | Value |
| VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
| Processed Oil Spec | Water Content, ppm | ≤5 |
Dielectric Strength,
Kv | ≥75 |
Filtration Fineness,
um | ≤5( or 1-5 as needed ) |
Gas Content,
% | ≤0.1 |
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil
Regeneration Machine
