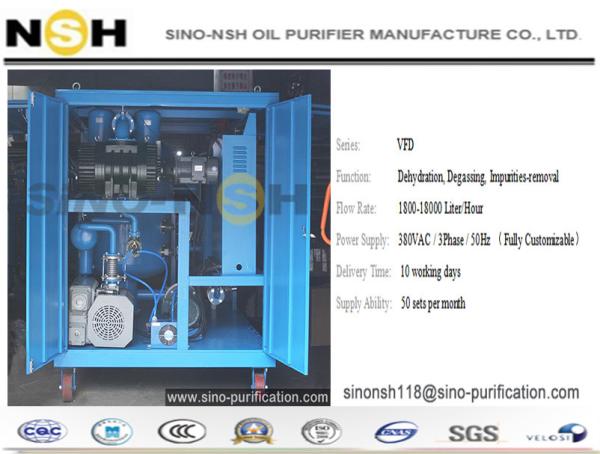

18000LPH Dehydration Degassing Filtering Impurities Transformer Oil
Purifier Model VFD
Application of Transformer Oil Purifier
NSH VFD series is mainly used to improve the properties of
insulation oil. It can remove trace water, gas, particulate matters
etc. from the insulating oil effectively and rapidly so as to boost
performance of transformers, circuit breakers, mutual inductors,
cable and capacitors which has insulation system. VFD series
specialize in purifying branded oil, insulating oil of high voltage
and super high voltage transformer. Additionally, it is suitable
for treating low viscosity lubrication oil.
Product advantage:
1)Sino-NSH-VFD is a dehydration and degassing unit with thermal and
double-stage vacuum processing.
2)Sino-NSH-VFD is mainly used to improve the properties of
insulating oils in electric power transformers and other oil filled
electrical equipment. It can remove dissolved and free water,
dissolved gas and particulate impurities effectively so as to
increase special indexes of insulation oil.
3)Sino-NSH-VFD combines vacuum flashing evaporation technology and
delaminating gradual-close filter technology to reach best
performance of oil purification. Meanwhile, by integrating
efficient thermal and double-stage vacuum, the breakdown voltage is
highly improved, which can be increased from 25kV to over 70kV.
4)ino-NSH-VFD maintains optimized structure and safe controls so as
to meet comprehensive requirement of ansformer manufacturers and
service companies. ino-NSH-VFD maintains optimized structure and
safe controls so as to meet comprehensive requirement of ansformer
manufacturers and service companies.
Transformer Oil Filtration Plant Technical Parameters:
| Parameters | Value | | |
| VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
| Capacity, liters/hour | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power, kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 |
| Total Power, kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 |
| Processed Oil Spec | Water Content, ppm | ≤5 |
| Dielectric Strength, Kv | ≥75 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
| Gas Content, % | ≤0.1 |
Company information:
Sino-NSH Oil Purifier Manufacture Co.,Ltd is a leading manufacture of oil
purification and regeneration systems worldwide.
Since 1992,Sino-NSH has been researching, developing and manufacturing oil
purification and recycling systems. Based on the profession and
achievements in this field, NSH passed the approval of the
ISO9001:2015 quality system, Environmental Management System as per
GB/T 24001-2016/ISO 14001:2015, and was awarded to Chinese
high-tech enterprise etc. NSH professional technical team
successfully developed hundreds of practical patents and obtained
certification for thr products.
NSH products are extensively used in the field of electric power,
petroleum, natural gas, mechanical manufacture, steel, metallurgy,
railway, aviation etc. to meet different demands of customers. And
tailored solutions are provided for special applications.
Service & support: NSH regards technical innovation and satifying service as its
philosophy. Taking advantage of human resource capital and
absorbing domestic and foreign advanced purification technology,
NSH is committed in making high quality purification equipment and
become the main manufacture base of purification machine in China.
