New Best Vacuum Online Vaccum Turbine Oil Purifier,Oil Filter
Machine
I.Turbine Oil Purifier Application
Our New Best Vacuum Online Vaccum Turbine Oil Purifier,Oil Filter
Machine can purify especially used gas/steam turbine oil. It will result in the improvement of the properties of turbine oil or
other lubrication and extending the maintenance period of turbines
or other equipments which have lubrication system and keep them
operate in good condition.It also can treat used
lubrication/gear/hydraulic oil, remove the water,gas and impurities
of it.
II. Turbine Oil Purifier Description
TF turbine oil purifier series is developed by vacuum evaporation technology,coacervation technology,coalescing technology,separating engineering technology and refined purification technology.
TF can eliminate water,gas,impurities,colloid,dielectric etc. rapidly and effectively in high vacuum situation and make the
waste oil reuse.
TF series can effectively extend the lifetime of oil and protect
turbine and other machinery which has lubrication system from
damage.
III. Turbine Oil Purifier Features
1. Eliminate soluble and dissolved water effectively and demulsify
rapidly.
TF series can not only separate large quantity of water but also
remove trace water from oil.Fitted with specially made demulsifying
device(water separator).It is capable of making turbid emulsified
oil very clear.
2. High effectively purify matters in oil such as impurities,sludge
etc.
The automatic backwash filtering system can remove large amount of
particulate matters and fine filter system can remove tiny
particles.
3. High automation,stability and operation online High
automation,small size,light weight,safety,and reliability.Installed with inrared liquid level automatic controller,the
purifier machine will run automatically and easy handling.
IV. Turbine Oil Purifier Technical Specification
| Item | Unit | TF-10 | TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 |
| Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 |
| Vacuum Range | Mpa | -0.06 ～ -0.096 |
| Working Pressure | Mpa | ≤0.3 |
| Clearness | NAS | ≤6 |
| Temperature Range | ℃ | 40 ～ 80 |
| Water Content | PPM | ≤100 |
| Impurity Size | μm | ≤5 |
| Demulification Number | Min | ＜15 |
| Power Supply | | 380V/3P/50Hz(or as needed) |
| Working Noise | dB(A) | ≤70 | ≤75 |
| Heating Power | Kw | 9 | 18 | 30 | 36 | 72 | 90 | 120 |
| Total Power | Kw | 11 | 20 | 34 | 41 | 78 | 96 | 126 |
| Pipeline Diameter | mm | DN20 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 |
| Net Weight | Kg | 320 | 400 | 420 | 550 | 750 | 850 | 950 |
| Size | length | mm | 1280 | 1300 | 1400 | 1550 | 1700 | 1800 | 1900 |
| width | mm | 750 | 900 | 1050 | 1100 | 1300 | 1400 | 1500 |
| high | mm | 1450 | 1450 | 1600 | 1700 | 1850 | 1950 | 2050 |
V.Turbine Oil Purifier Available Style
1. Fixing type,mobile type with four wheels and mobile type with
trailer.
2. Normal appearance type,shelf-covering type and explosion-proof
type.
3. Avaliable in different color.

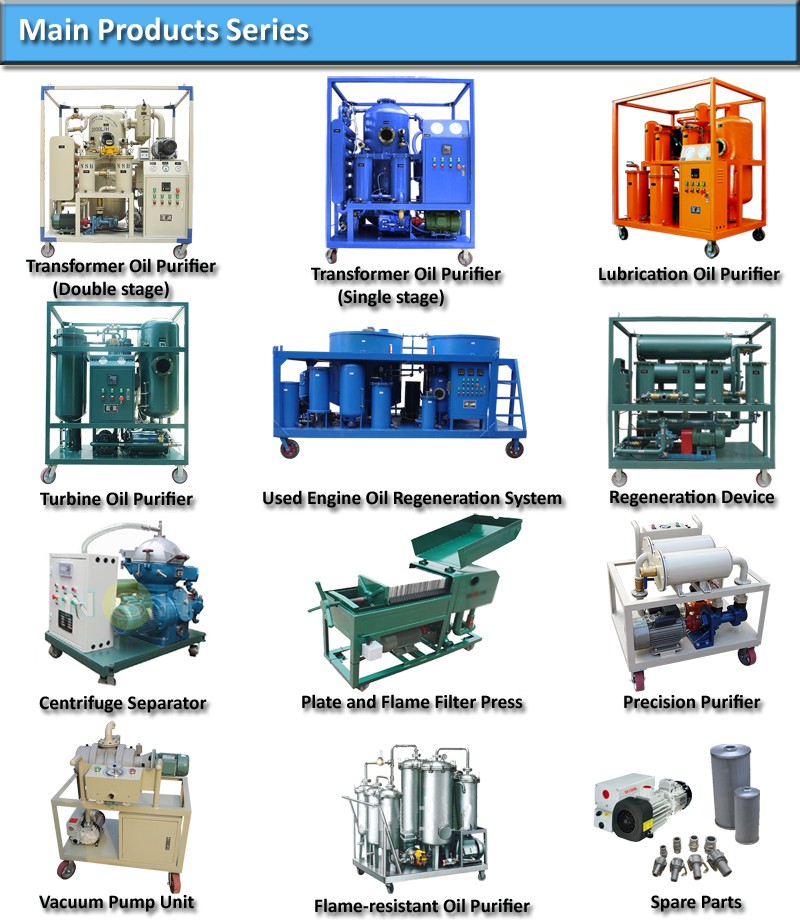

VI. More choice:
VFD series: Insulation oil purifier System specialize in purifying branded
oil, insulation oil of high voltage and super high voltage
transformer. Additionally, it is suitable for treating low
viscosity lubrication oil.
LV series: Lubrication Oil Filter System are suitable especially for
purifying and restoring hydraulic oil, machine oil, coolant oil and
various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used
internal-combustion engine oil including diesel engine oil,
gasoline engine oil, and used hydraulic oil, other used lubrication
oil of machinery.
GED series: it is used to recycle all kinds of waste oil into base oil or
diesel oil with high quality.
