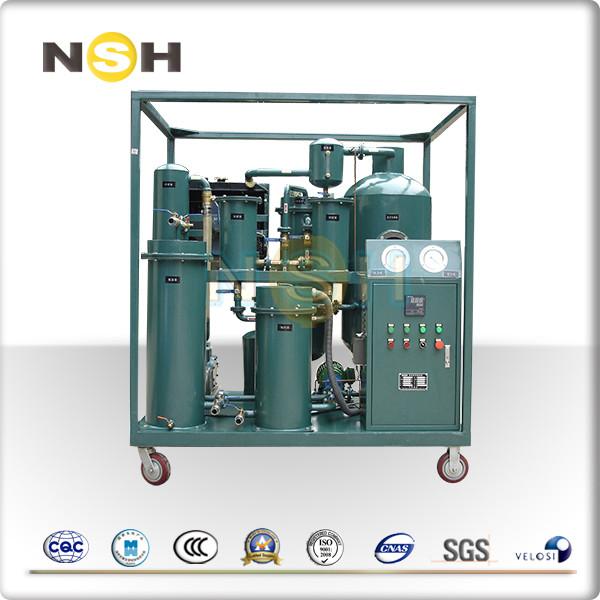

Decoloring Hydraulic Oil Cleaning Machine/Movable vacuum hydraulic
oil purifier unit
I. Application
LV series Lubricating oil purifier are specially for purifying
kinds of lubricant oils, like hydraulic oil,machine oil,coolant oil and various other lubrication
oils.
Most of breakdown of machinery which has lubrication oil system
results from contaminated lubrication in which has
water,gas,impurities etc.LV series can rapidly remove
water,gas,particulate matters and impurities from lubrication oil
and improve properties of lubricating oil so as to greatly extend
lifetime of machinery which has lubrication system.
Custom options are available.
II. Features
1. Perfect capacity of removing impurities.The special filters made by NSH are made of special materials which
can eliminate various impurities,water and gas effectively and
rapidly.
2. Automatic reverse wash system will extend the lifetime of filters and improve the performance of
the filters.
3. High performance of security system including pressure protection device and automatic temperature
controller makes purifier safely.
4. Online work.
5. Easy handling and maintenance.
6. Lower maintenance and replacement expenses.
7. Small size,light weight,low noise.
8. Various sizes and configurations(alloy shield) available.
III. Available Style
1. Fixing type,mobile type with four wheels and mobile type with
trailer.
2. Normal appearance type,shelf-covering type and explosion-proof
type.
3. Avaliable in different color.
IV. Relative Models
LV-A Lubrication Oil Automation Oil Purifier
LV-R Lubrication Oil Regeneration Purifier
LV-E Lubrication Oil Exolosion-proof Purifier
V. Technical Specification
| Item | Unit | LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 |
| Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 |
| Vacuum Range | Mpa | -0.06 ～ -0.096 |
| Working Pressure | Mpa | ≤0.3 |
| Clearness | NAS | ≤6 |
| Temperature Range | ℃ | 40 ～ 80 |
| Water Content | PPM | ≤100 |
| Impurity Size | μm | ≤5 |
| Demulification Number | Min | ＜15 |
| Power Supply | | 380V/3P/50Hz(or as needed) |
| Working Noise | dB(A) | ≤70 | ≤75 |
| Heating Power | Kw | 9 | 18 | 30 | 36 | 72 | 90 | 120 |
| Total Power | Kw | 11 | 20 | 34 | 41 | 78 | 96 | 126 |
| Pipeline Diameter | mm | DN20 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 |
| Net Weight | Kg | 320 | 400 | 420 | 550 | 750 | 850 | 950 |
| Size | length | mm | 1280 | 1300 | 1400 | 1550 | 1700 | 1800 | 1900 |
| width | mm | 750 | 900 | 1050 | 1100 | 1300 | 1400 | 1500 |
| high | mm | 1450 | 1450 | 1600 | 1700 | 1850 | 1950 | 2050 |
VI. Relative Series:
VFD series: Insulation oil purifier System specialize in purifying branded
oil, insulation oil of high voltage and super high voltage
transformer. Additionally, it is suitable for treating low
viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for
purifying turbine lubricating oil. It also applys to treat
hydraulic, coolant oil and other lubrication in which contain large
of water, vapor, impurities, sludge, dielectric and colloid. It can
eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for
purifying and restoring hydraulic oil, machine oil, coolant oil and
various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used
internal-combustion engine oil including diesel engine oil,
gasoline engine oil, and used hydraulic oil, other used lubrication
oil of machinery.
GED series: it is used to recycle all kinds of waste oil into base oil or
diesel oil with high quality.
Multifunction Lubrication Oil Processing/oil recycling/oil
filtration/oil regeneration/oil
treatment/oil purification Plants
