Waste Lube Oil Recycling System, Lube Oil Vacuum Dehydration
Machine, Vacuum Oil Purifier
I. Vacuum Oil Purification Machine Description
VFD Vacuum Oil Purifier mainly used to improve the properties of insulation oil. It can
remove trace water, gas, particulate matters etc. From the
insulating oil, electric oil and transformer oil effectively and
rapidly so as to boost performance of transformers, circuit
breakers, mutual inductors, cable and capacitors which have
insulation system.
II. Vacuum oil purifier Features
1. High efficiency, adopted special three-dimensional flash
evaporation technology,which is 5-8 times higher than common vacuum
purifier and able to swiftly remove moisture, gas from oil with
maintenance free.
2. Combined with mesh filtering and polymer adsorption technology,
high quality filter elements adopted with high impurity adsorption
capacity, gradually thicker,high precision, multistage filtration.
3. Liquid level control with infrared ray detection can
automatically balance inlet and outlet oil, achieve real unmanned
operation.
4. This type of unit can be used for vacuum filling and vacuum
drying of insulation oil of transformers or power utilities.
5. The breakers and wires of vacuum oil purifier are able to meet
the requirement of long period continuous safe working under rated
temperature.
III. Technical Specification of Vacuum Oil Purifier
| Technical Specification |
| Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
| Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 |
| Vacuum Range | Mpa | -0.092 ～ -0.099 |
| Working Pressure | Mpa | ≤0.2 |
| Max Vacuum Range | Pa | ≤50 |
| Temperature Range | ℃ | 45 ～ 65 |
| Breakdown Voltage | Kv | ≥75 |
| Impurity Size | μm | ≤5 |
| Dielectric Loss | Tg | ≤0.005 |
| Interfacial Tension | mn/m | ≥40 |
| Water Content | PPM | ≤4 |
| Gas Content | % | ≤0.1 |
| Power Supply | | 380V/3P/50Hz(or as needed) |
| Working Noise | dB(A) | ≤72 | ≤78 |
| Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 |
| Total Power | Kw | 35 | 54 | 77 | 98 | 129 | 189 | 254 |
| Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 | DN65 |
| Net Weight | Kg | 550 | 850 | 1000 | 1100 | 1400 | 1600 | 2200 |
| Size | length | mm | 1500 | 1500 | 1700 | 1900 | 2100 | 2100 | 2600 |
| width | mm | 1200 | 1200 | 1500 | 1400 | 1550 | 1550 | 1800 |
| high | mm | 1750 | 1750 | 1850 | 1800 | 1900 | 1900 | 2000 |
IV. Available Style
1.Avaliable in different color.
2. Normal appearance type,shelf-covering type and explosion-proof
type.

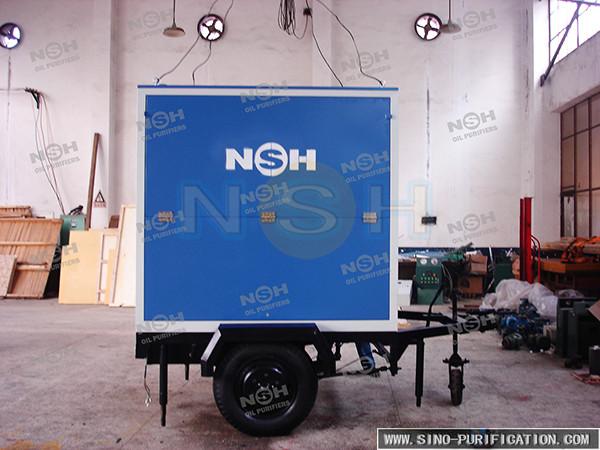

3. Fixing type,mobile type with four wheels and mobile type with
trailer.
V .Another Products of oil purifiers
VFD series: Insulation oil purifier System specialize in purifying branded
oil, insulation oil of high voltage and super high voltage
transformer. Additionally, it is suitable for treating low
viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for
purifying turbine lubricating oil. It also applys to treat
hydraulic, coolant oil and other lubrication in which contain large
of water, vapor, impurities, sludge, dielectric and colloid. It can
eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for
purifying and restoring hydraulic oil, machine oil, coolant oil and
various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used
internal-combustion engine oil including diesel engine oil,
gasoline engine oil, and used hydraulic oil, other used lubrication
oil of machinery.
GED series: it is used to recycle all kinds of waste oil into base oil or
diesel oil with high quality.
