China Manufacturer Insulating Oil Filtration Machine Insulation Oil
Purifier

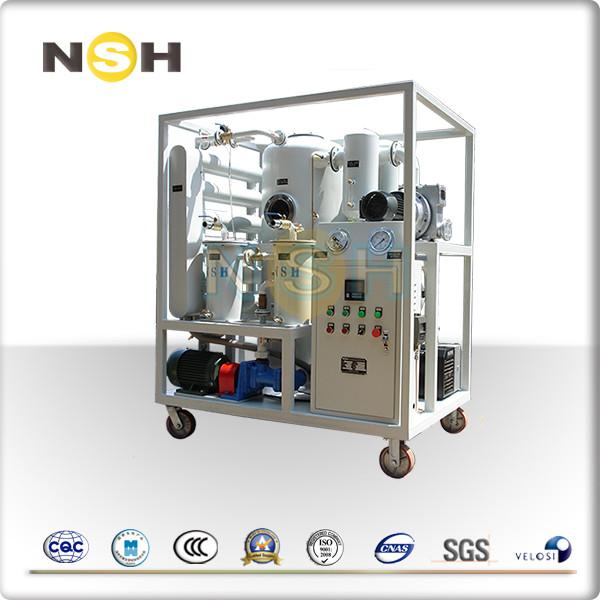

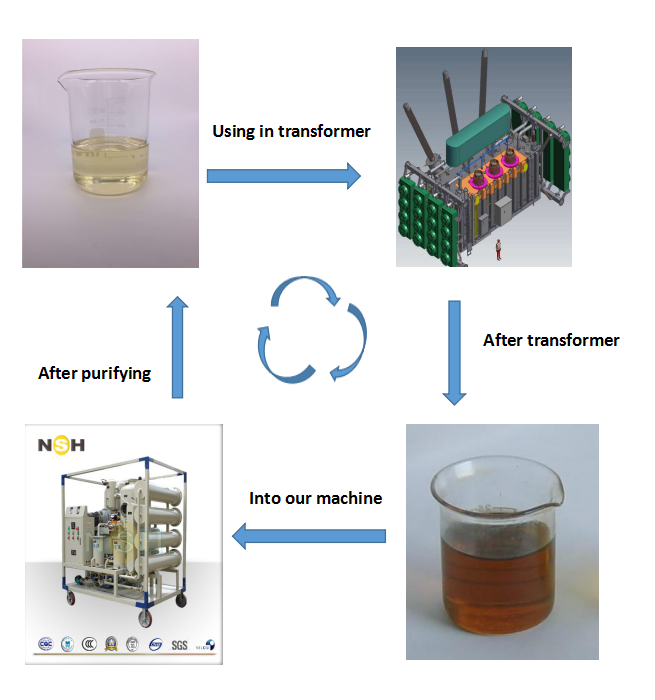

I. Description of transformer insulation oil purifier
NSH Transformer oil filtration machine is widely used in purification of various types of insulating oil ,
especially the deep purification treatment of high-voltage
transformer oil , high-grade new oil and imported oil.
II. Another models of transformer oil purifier
VF series-- Single-Stage Vacuum Insulation Oil Filtration Machine
VFD series-- Double-Stage Vacuum Transformer Oil Filtration Machine
VFD-R series-- Double-Stage Vacuum Insulation Oil Regeneration
Filtration Machine
III. Characteristics of our Insulation oil purification plant:
1. Double-stage, high vacuum can highly effectively remove the
water in the oil. It can improve the breakdown voltage, the amount
of degassing, the degree of dryness and the effect of one-time
filtration.
2. Precise filtration system, multi-stage filtration can remove
particulate impurities in the oil. High-quality filter medium has
strong mechanical strength, high ability of containing pollution,
corrosion proof and wear well.
3. Highly effective degassing and dewatering system that use large
area three-dimensional flash vaporization technology to remove the
water and gas in the oil.
4. Advanced pressure protection, infrared liquid level control
system and chain control system for electric heating make the
operation safe.
5. It can dry electric machines and vacuum add oil to transformers.
IV. Available Options
1. Normal appearance type,shelf-covering type and explosion-proof
type. For last the lifetime of the machine.
2. Fixing type,mobile type with four wheels and mobile type with
trailer.You can use is at every place as you need.
3. The color can be customized as you required.
V. Technical Specification
| Technical Specification |
| Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
| Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 |
| Vacuum Range | Mpa | -0.092 ～ -0.099 |
| Working Pressure | Mpa | ≤0.2 |
| Max Vacuum Range | Pa | ≤50 |
| Temperature Range | ℃ | 45 ～ 65 |
| Breakdown Voltage | Kv | ≥75 |
| Impurity Size | μm | ≤5 |
| Dielectric Loss | Tg | ≤0.005 |
| Interfacial Tension | mn/m | ≥40 |
| Water Content | PPM | ≤4 |
| Gas Content | % | ≤0.1 |
| Power Supply | | 380V/3P/50Hz(or as needed) |
| Working Noise | dB(A) | ≤72 | ≤78 |
| Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 |
| Total Power | Kw | 35 | 54 | 77 | 98 | 129 | 189 | 254 |
| Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 | DN65 |
| Net Weight | Kg | 550 | 850 | 1000 | 1100 | 1400 | 1600 | 2200 |
| Size | length | mm | 1500 | 1500 | 1700 | 1900 | 2100 | 2100 | 2600 |
| width | mm | 1200 | 1200 | 1500 | 1400 | 1550 | 1550 | 1800 |
| high | mm | 1750 | 1750 | 1850 | 1800 | 1900 | 1900 | 2000 |
VI. Another types of our oil purifier machines
TF series: Turbine oil purifier system is particularly suitable for
purifying turbine lubricating oil. It also applys to treat
hydraulic, coolant oil and other lubrication in which contain large
of water, vapor, impurities, sludge, dielectric and colloid. It can
eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for
purifying and restoring hydraulic oil, machine oil, coolant oil and
various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used
internal-combustion engine oil including diesel engine oil,
gasoline engine oil, and used hydraulic oil, other used lubrication
oil of machinery.
GED series: it is used to recycle all kinds of waste oil into base oil or
diesel oil with high quality.
