High Efficient Turbine Oil Purifier Oil Purification For Turbine
Oil
NSH-TF-E Explosion-Proof Turbine Oil Purifier
Sino-NSH-TF-E is Explosion-proof type designed for flammable and
combustible working conditions in power plant, petroleum,
petrochemical, chemistry, coal mining, metallurgy and other
industries.
Sino-NSH-TF-E adds an explosion-proof system compare to NSH-TF,
using comprehensive explosion-proof technology. The components such
as heating system, electric control system, motor and solenoid
valves etc are well-selected Explosion-proof type adapt to
different danger level.
Another types of our oil purifier machines

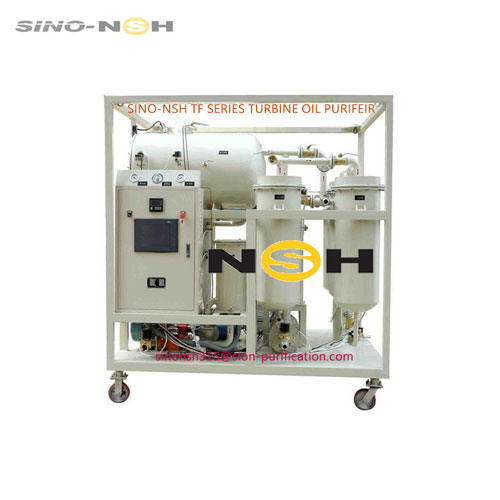

TF series oil purifier: Turbine oil purifier system is particularly suitable for
purifying turbine lubricating oil. It also applys to treat
hydraulic, coolant oil and other lubrication in which contain large
of water, vapor, impurities, sludge, dielectric and colloid. It can
eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for
purifying and restoring hydraulic oil, machine oil, coolant oil and
various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used
internal-combustion engine oil including diesel engine oil,
gasoline engine oil, and used hydraulic oil, other used lubrication
oil of machinery.
GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or
diesel oil with high quality.
Turbine oil filter adopts new gathering and separation technology,
aiming at the characteristics of large water content of turbine oil
and turbine oil, easy emulsification, containing more impurities
and developed and produced the first product in China.
Turbine oil filter is mainly used for turbine oil treatment of
generator set. It can quickly and efficiently remove moisture, gas
and impurities in oil. Make the quality index of the oil reach the
new oil standard, ensure the normal operation of the unit
regulation and lubrication system, and extend the maintenance cycle
of the unit. Adopt the international advanced principle of
strengthening hydrophilic and hydrophobic, dehydration and
precision filtration in one, can online detoxification,
dehydration, acid removal, impurity removal, so that the serious
turbid emulsified turbine oil becomes clear and transparent. It is
suitable for deep watering and purifying of transparent oil,
hydraulic oil, refrigerating oil and other lubricating oil which
need to remove a large amount of water and realize precision
filtering impurities. When the turbine oil filter is working, the
oil enters the primary filter through the inlet under the action of
internal and external pressure difference, and the large particles
of impurities are filtered out. The oil enters the secondary filter
after heating, and then enters the water separator after filtering
out the small particles of impurities.For water segregator used to
strengthen the hydrophilic hydrophobic technology, changed the
interaction force of oil-water two phase interface, make the small
droplets of oil accelerated motion, and together form a large
droplets from the oil precipitation, precipitation in the water
container, and then the oil by the fine filter to remove impurity
particles in oil, the oil into the vacuum tank, using vacuum flash
technology, residual trace moisture in removing oil, evaporation of
water through the condenser cooling or by vacuum system, moisture
removal of oil output by the oil pump, complete a net oil process
Technical data
| Parameter | Value |
| TF-150 | TF-300 |
| Capacity, liters/hour | 9000 | 18000 |
| Heating Power, kW | 72 | 120 |
| Total Power, kW | 78 | 129 |
| Power Supply | Fully customizable |
| Inlet Diameter, mm | 40 | 65 |
| Outlet Diameter, mm | 40 | 65 |
Dimensions
(without trailer) | length, mm | 1850 | 2400 |
| width, mm | 1250 | 1700 |
| height, mm | 1610 | 1760 |
| Weight (without trailer), kg | 750 | 1500 |
| Processed Oil Spec | Water Content, ppm | ≤ 100 |
| Cleanliness (NAS 1638) | ≤ 6 |
| Filtration Fineness, um | ≤ 5 (or 1-5 as needed) |
| Emulsification value, min | ≤ 15 |
