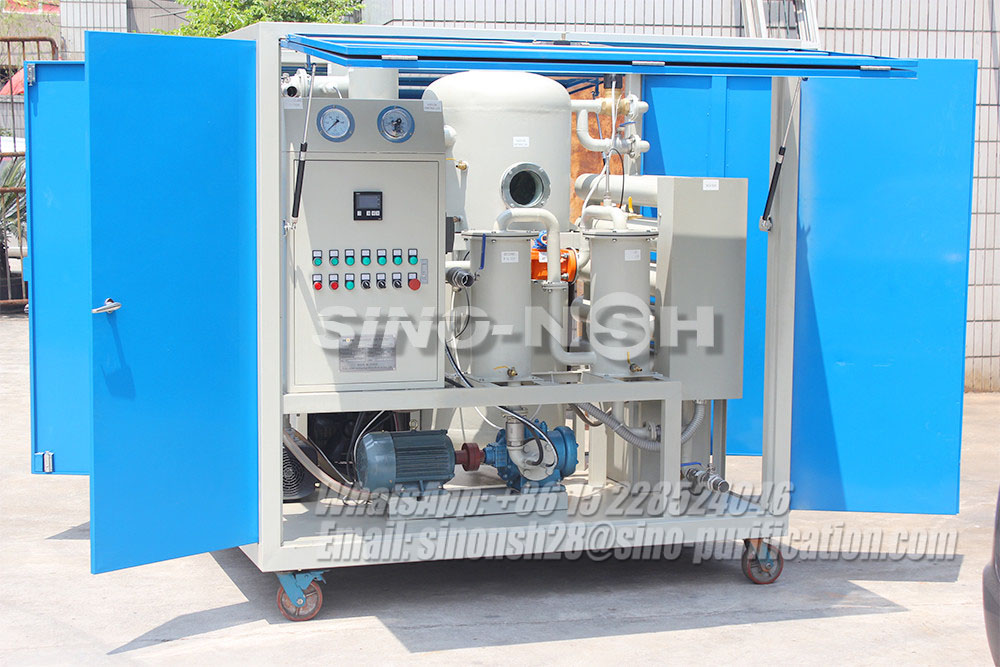

Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour

1. Function

Sino-NSH vacuum oil filter is used to filter the insulating oil in the transformer. It removes moisture, gas, and impurities in the oil efficiently through degassing, dehydration, and precision filtration, and improves the voltage characteristics of the transformer insulating oil.

1. Oil heating.
2. Oil dehydration and degassing.
3. Solid particle removal.
4. Oil delivery.
5. Air vacuum from external equipment.

2. Features

1. Duel-stage extreme vacuum system: can completely and efficiently remove moisture and gas.
2. High-efficiency and high-power oil heating system: the heating temperature can be adjusted automatically on the touch screen.
3. Multi-stage high-precision filtration system: completely removes trace solid particles in the oil.
4. Equipped with a touch screen: integrated system control, data monitoring, operation manual viewing, system operation status viewing, alarm display, and other functions.
5. Adopt a highly secure alarm system and interlocking control: including power phase loss, phase error, overpressure, blockage alarm, etc., to ensure the automatic and safe operation of the machine.
6. Foam level detector: automatically removes oil foam during the oil filtration process, no need to be on duty, and it runs automatically.
7. Adopt PLC control: vacuum pump Roots pump oil pump heater interlocking control, and automatic start and stop.
8. Simple operation, suitable for novices with no operating experience.
9. With a vacuum connector: the oil filter can also be used as a vacuum pump system to vacuum equipment such as transformers.
10. The special vacuum tank is filled with fillers to increase the contact area and achieve a better dehydration effect.
11. The filter uses a single large-volume filter element with high filtration accuracy, large dirt-holding capacity, and long service life.

3. Controller & measuring testers

1. Temperature controller
2. Pressure controller
3. Vacuum controller
4. Pressure gauge
5. Vacuum gauge
6. Liquid level switch
7. Flow switch
8. Foam level detector

4. Optional Additional Accessories
Online measuring instruments

1. Micro-water tester
2. Flow meter
3. Particle counter
4. Pirani vacuum gauge

Others:

1. Rainproof and dustproof metal cover
2. Dual pneumatic tire long-distance transport trailer
3. Quadruple pneumatic tire long-distance transport trailer

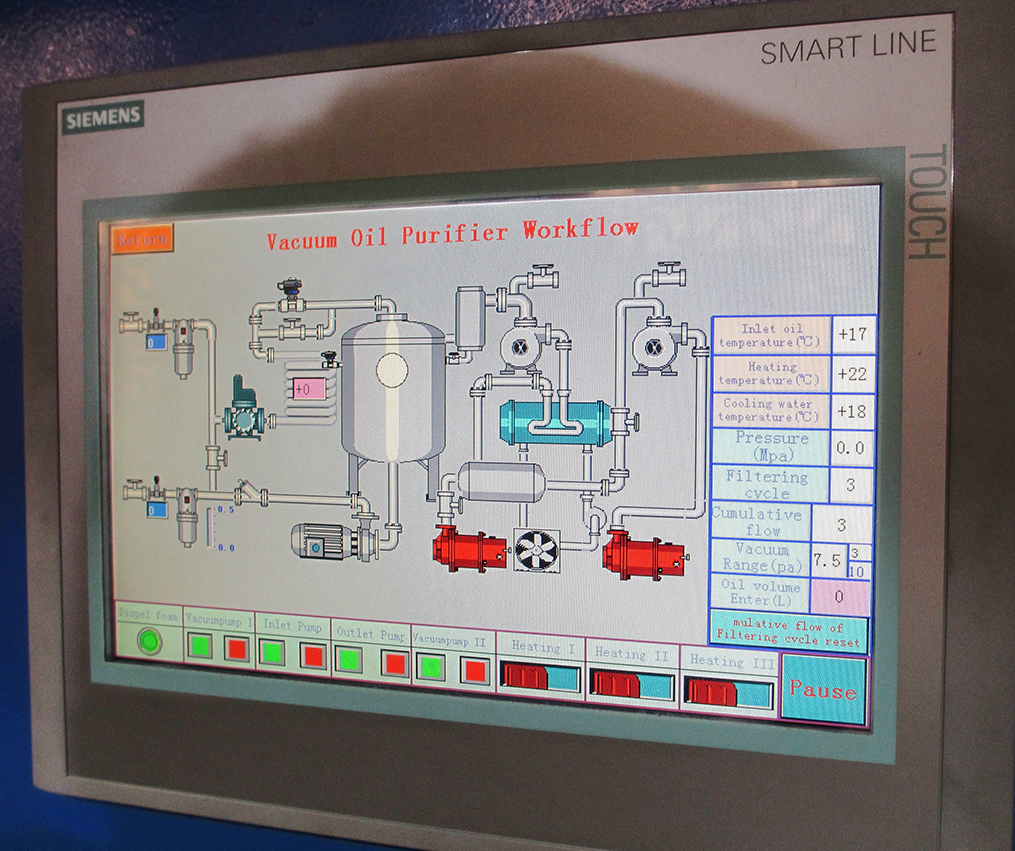

5. Touch Screen Details

1. Auto mode and manual mode switch
2. System operation and date inspection
3. Alarm display and control
4. System running status indication
5. Operation handbook

6. Parameter

7. What You’ll Get After Your Inquiry

1. Formal quotation with price, product and accessories list, and warranty.
2. Technical details including specs sheet, machine detailed introduction, 3D model, flow chart, and reference pictures.
3. Configuration details.
4. Reference videos.

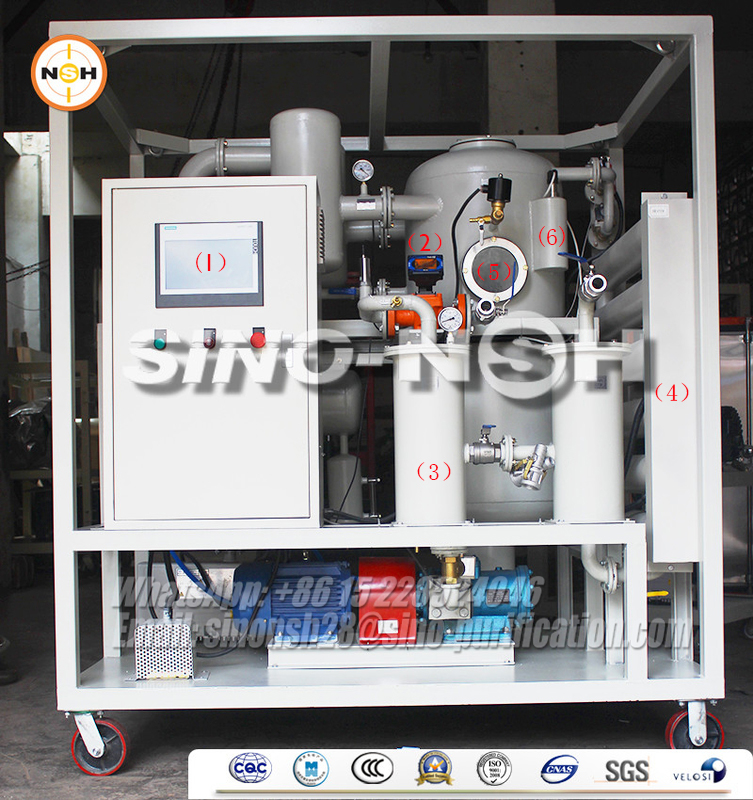

8. Structure Instruction

9. Delivery

1. Wooden case
2. Factory inspection.
3. FOB, CIF, EXW, etc price terms available.
4. 15-30 working days prepared at our factory.
5. 12-month warranty and lifelong after-sale services.
6. Manual book with structure diagram, operation, and maintenance instructions.
7. Instruction Video.

10. Pictures

11. Matching Equipment

1. Vacuum pump system
2. Air dry generator
3. Breakdown voltage tester
4. SF6 gas recovery and charging device
